How to measure V-belts

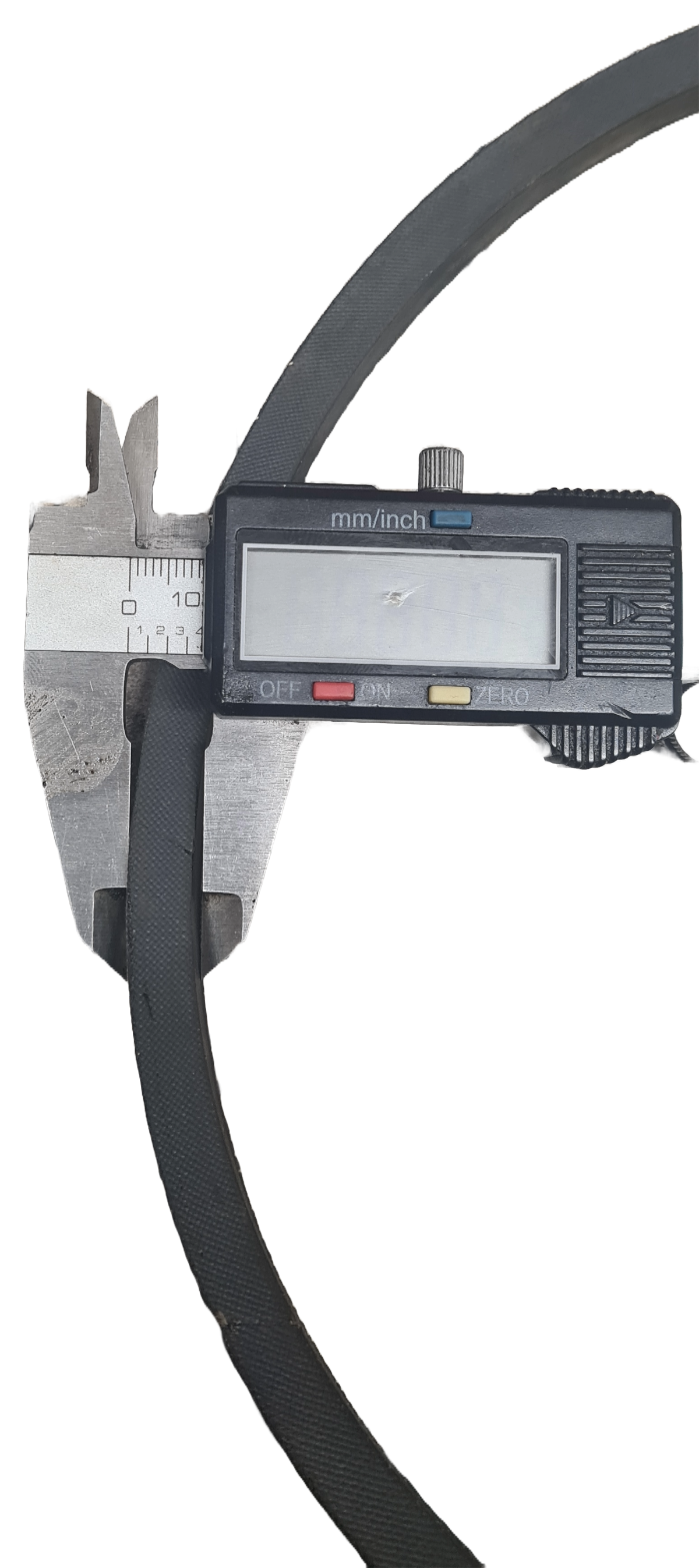

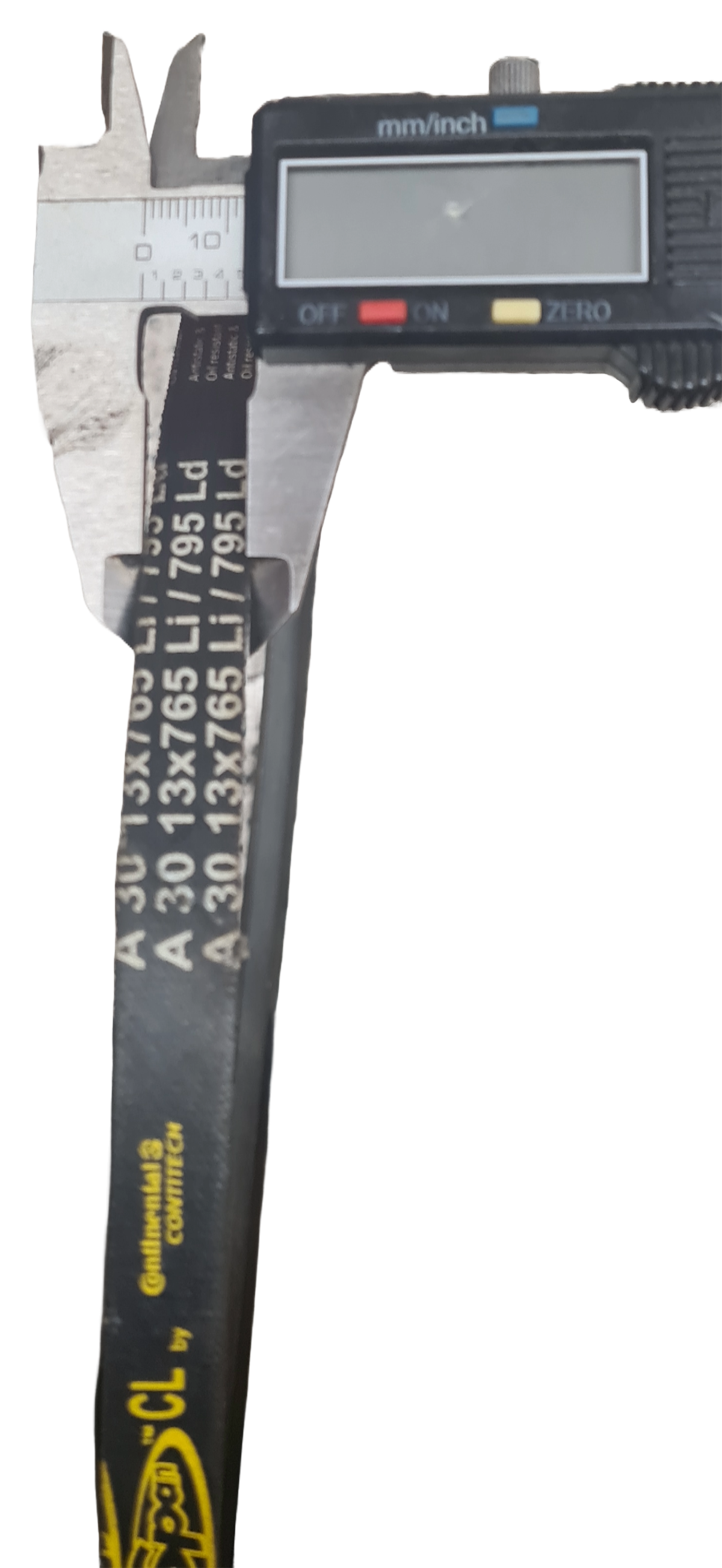

First find out what section belt you have by measuring across the widest part of the belt & also height of belt
| Section | Top width (mm) | Top width (in) Height(mm) | Height (mm) | Height (in) |
|---|---|---|---|---|
| Standard v-belts | ||||
| Z | 10 | 3/8" 6 | 6 | 1/4" |
| A | 13 | 1/2" 8 | 8 | 5/16" |
| B | 17 | 21/32" 11 | 11 | 13/32" |
| C | 22 | 7/8" 14 | 14 | 17/32" |
| D | 32 | 1-1/4" 20 | 19 | 3/4" |
| E | 40 | 1-1/2" 25.5 | 25 | 29/32" |
| Wedge v-belts | ||||
| SPZ | 9.7 | 3/8" 8 | 8 | 5/16" |
| SPA | 12.7 | 1/2" 10 | 14 | 17/32" |
| SPB | 17 | 21/32" 13 | 23 | 7/8" |
| SPC | 22 | 7/8" 18 | 18 | 11/16" |
| Double v-belts / Hexagonal | ||||
| AA | 13 | 1/2" 10 | 10 | 3/8" |
| BB | 17 | 21/32" 13 | 13 | 1/2" |
| CC | 22 | 7/8" 17 | 17 | 21/32" |
| Fractional horsepower v-belts | ||||
| 2L | 6.4 | 1/4" | 3.2 | 5/32" |
| 3L | 9.5 | 3/8" | 5.6 | 7/32" |
| 4L | 12.7 | 1/2" | 7.9 | 5/16" |
| 5L | 16.7 | 21/32" | 9.5 | 3/8" |
V-belt circumference
Next we need to find out the v-belts circumference to do this follow the steps below.

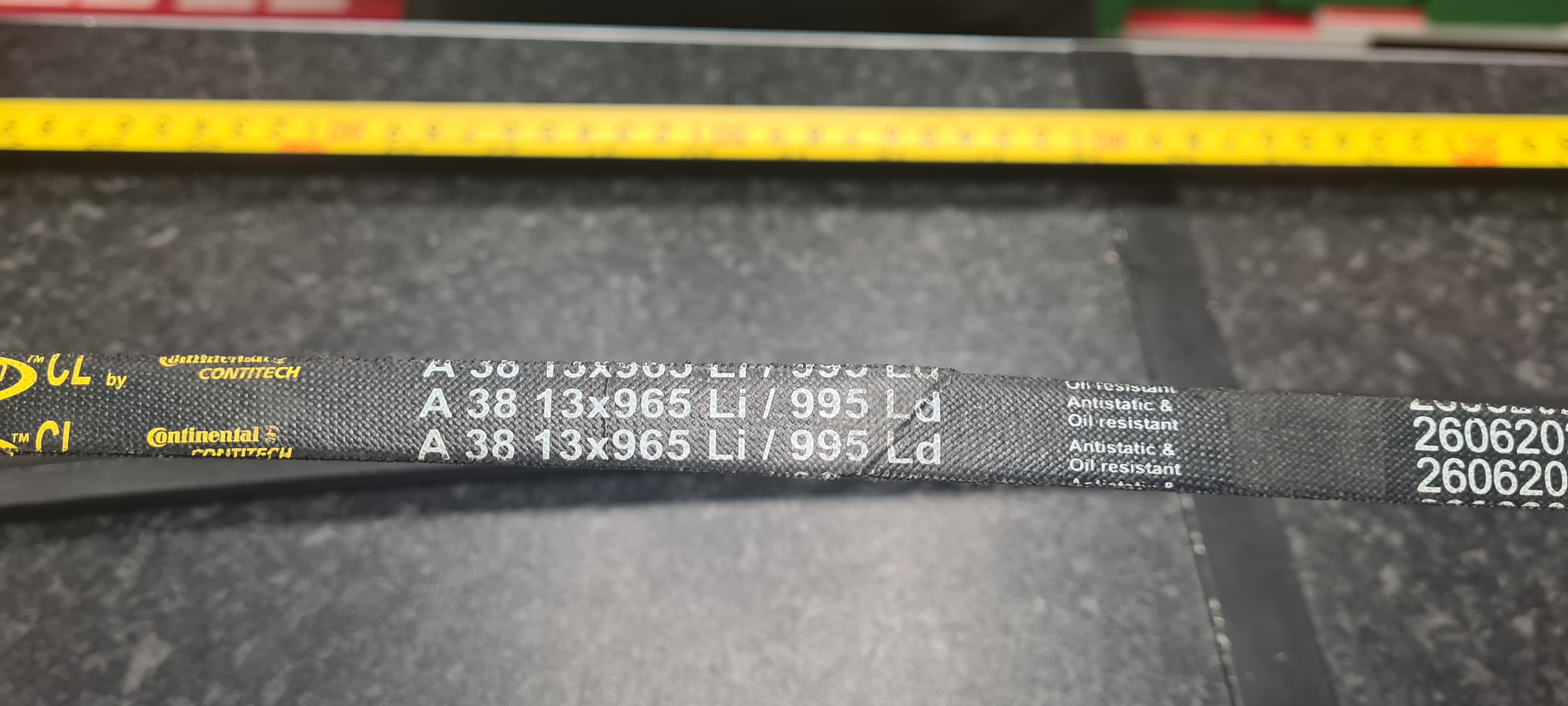

A v-belt's size designates its inner circumference. For example, an A24 v-belt is an A section belt with a 24-inch inner circumference. However, if no size can be read, the outer circumference must be measured first to learn the inner circumference.
Watch our clip on how to measure circumference.
The table below shows how the inner or outer circumference of a v-belt can further specify the belt's size In table below, the values for outer circumference, inner circumference, and v-belt sizes are only examples there are many different combinations for belts.
If your not sure please feel free to use the contact form at the bottom of the page. And a member of the team will be in contact.
The variables in Table 2 are:
• Ic: Inner circumference
• Oc: Outer circumference
• C: constant to subtract
| Section | Outer circumference | Constant to subtract | Inner circumference | Equation | V-belt designation |
|---|---|---|---|---|---|
| Ic = Oc - C | |||||
| Z | 21.5" | 1.5" | 20" | Z20 | |
| A | 24" | 2" | 22" | A22 | |
| B | 26" | 3" | 23" | B23 | |
| C | 30" | 4" | 26" | C26 | |
| D | 35" | 5" | 30" | D30 | |
| E | 40" | 6" | 34" | E34 | |
| SPZ | 625 mm | 13 mm | 612 mm | SPZ612 | |
| SPA | 750 mm | 18 mm | 732 mm | SPA732 | |
| SPB | 1422 mm | 22 mm | 1400 mm | SPB1400 | |
| SPC | 2030 mm | 30 mm | 2000 mm | SPC2000 | |
| AA | 30" | 2" | 28" | AA28 | |
| BB | 33" | 3" | 30" | BB30 | |
| CC | 40" | 4" | 36" | CC36 | |
| 3V | 50" | - | - Oc X 10 | 3V500 | |
| 5V | 60" | - | - | 3V600 | |
| 8V | 75" | - | - | 3V750 | |
| 2L | 20" | - | - | 2L200 | |
| 3L | 30" | - | - | 3L300 | |
| 4L | 40" | - | - | 4L400 | |
| 5L | 50" | - | - | 5L500 |
